Description

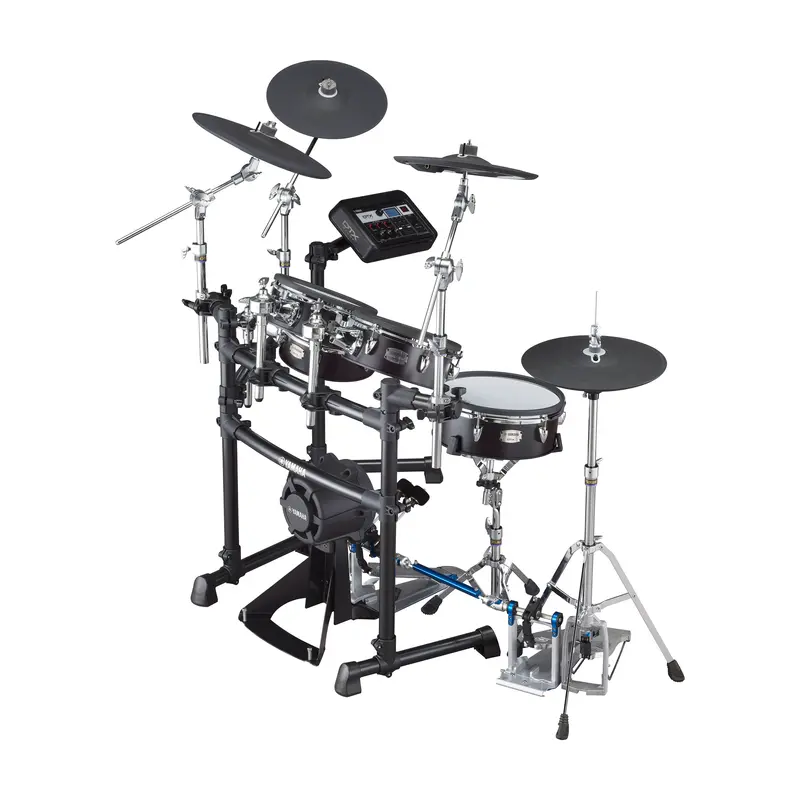

Yamaha DTX8K-M-Black Forest

Overview

DTX high-grade standard model

The DTX8 Series comes equipped with the DTX-PRO module that possesses the same tone generator as the DTX-PROX module. The birch shells are painted the same way as Yamaha acoustic drums resulting in new pads that are as beautiful as the real thing.

The DTX-PRO features real sounds and real sampled room ambience recorded in world-renowned studios, KIT MODIFIER knobs that inspire creativity and hardware that is sturdy and easy to use. This new standard DTX captures the very essence of the flagship model.

• Faithfully reproduces real drum sounds and real-room ambience recorded in world-renowned studios
• AMBIENCE, COMP and EFFECT Kit Modifier knobs allow you to create your own unique sounds
• REMO 2-ply mesh heads with outstanding noise reduction, durability and great rebound
• Beautiful wood shells built and finished at Yamaha acoustic drum factories
• Snare/tom/hi-hat pads equipped with two playing zones; 3-zone cymbal pads
• Ride cymbal equipped with a hit point detection function
• Professional Yamaha system hardware used for hardware and racks

Real sounds that drive the drummer

No compromise has been made in recording the sound of the instruments themselves. DTX-PRO sounds have been fine-tuned to naturally follow the drummer’s performance and allow for maximum expression.

The acoustic drum sounds built into the DTX-PRO are all real sounds recorded in some of the best recording studios in the world. As well as recording the direct drum sounds, the unique natural room ambience of the studios where they were recorded was also sampled.

Performances by leading Yamaha drums artists were recorded and mixed by a team of recording engineers to give the final instrument samples. The project sound director specified exacting recording techniques to capture the full detailed sound of each drum and cymbal.

The drum pads have been carefully matched to the DTX-PRO Module to offer excellent expressive capabilities.

Intuitive functionality that stirs creativity

The Kit Modifier featured on the DTX-PRO offers drummers limitless possibilities for their creativity.

The KIT MODIFIERs condense Yamaha’s sound creation know-how into three knobs: AMBIENCE, COMPRESSION, and EFFECT.

The AMBIENCE knob controls natural ambience and reverb. From 0–50% it adjusts real recorded ambience; above 50% it adds high-quality digital reverb.

The COMP and EFFECT knobs use Yamaha’s “1-knob” control technology. COMP applies compression to the whole kit, while EFFECT adjusts the internal effects processors.

The mesh pads use two-ply Remo heads with excellent noise reduction, durability, rebound and feel. The snare pad includes three sensors for precise response.

Superbly playable

Reproducing the way a drum behaves when struck is key to the playability of electronic drums. Yamaha studied drum behavior extensively and worked with professional drummers to refine the expressive capabilities of the DTX-PRO.

Same tone generator as the flagship series

The DTX8 Series features the DTX-PRO module, which uses the same sound engine as the flagship DTX-PROX. Selecting the correct trigger setting ensures optimal performance.

*The configuration screen is displayed upon initial startup.

Reliable Yamaha hardware

The DTX8 Series uses Yamaha drum hardware trusted by professionals worldwide. Ball clamps are used for toms, and boom-retractable cymbal holders allow straight or boom use. Snare and hi-hat stands are included.

An extensive range of training functions to support drummers

The DTX-PRO includes a programmable metronome, recorder, 10 training functions and 37 training songs covering various genres.

Specs

Pad Sets

Snare		XP125SD-M (12-inch mesh pad with 2-zone)
Tom Pad		XP105T-M (10-inch mesh pad with 2-zone)
Floor Tom Pad		XP105T-M (10-inch mesh pad with 2-zone)
Kick Pad		KP90 (7.5-inch rubber pad with multi-layer cushion)
Hi-Hat Pad		RHH135 (13-inch pad with 2-zone)
Crash Cymbal 1		PCY135 (13-inch pad with 3-zone)
Crash Cymbal 2		PCY135 (13-inch pad with 3-zone)
Ride Cymbal		PCY155 (15-inch pad with 3-zone)
Hi-Hat Stand		HS650A
Snare Stand		SS662 (Snare Stand for 12″)
Footprint (Average)		1,100 mm x 1,500 mm
Rack System		RS8
Weight		41.55 kg

Tone Generator

Tone Generator
Dimensions	Width	303 mm (11-15/16 in)
	Height	196 mm (7-11/16 in)
	Depth	66 mm (2-5/8 in)
Weight		1.5 kg (3 lbs, 5 oz)
Maximum Polyphony		256 notes
Effects		EQ / Comp / Transient / Insertion, Ambience / Effect 1 / Effect 2, Master Comp / Master Effect, Master EQ / Phones EQ
Drum Kits		Preset: 40 Kits, User: 200 Kits
Voices		712
Click
Click Sets		30
Tempo		30 to 300 BPM, Tap Tempo supported
Time Signatures		1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16
Subdivisions		Accents, quarter notes, eighth notes, sixteenth notes, triplets
Others		Individual click volume control, WAV import, timer
Training
Types		10
Songs		Preset: 37 songs, User: 1 song
Audio Files
Import Limit		1,000 files
Maximum Loadable Sample Time		760 sec mono, 380 sec stereo
Sample Format		WAV
Recorder
Recording Time	Internal Memory	Maximum of 90 seconds
	USB Flash Drive	Maximum of 90 minutes per file
Format		WAV (44.1 kHz, 16 bit, stereo)
Other
Connectors	DC IN	DC IN (+12V)
	Headphones	Standard stereo phone jack
	AUX IN	Stereo mini jack
	Output	OUTPUT L/MONO, R
	USB	USB TO DEVICE, USB TO HOST
	MIDI	MIDI OUT
	Trigger Input	Trigger input jack ×10 (supports up to 14 pads with Y-cable)
Display		Full Dot LCD (128×64)
