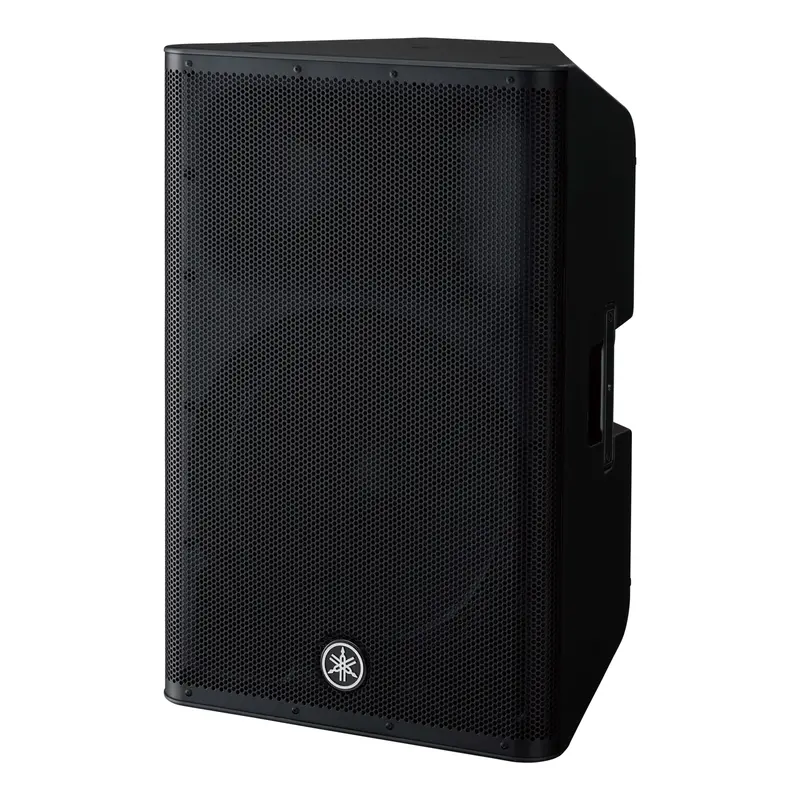

Yamaha DXR15MKII 15″ 2-Way Active Loudspeaker — 1100W Class-D Power

General Features

• 15″ powered loudspeaker with 1100W Class-D amplifier
• Achieves high SPL output with remarkable clarity throughout its frequency response
• 1.75″ neodymium high-frequency compression driver and high-output 15″ woofer which combine for a wide frequency response with powerful bass
• Frequency Range: 49 Hz to 20 kHz
• Max SPL: 134 dB
• Precision 48-bit DSP processing for clear high-definition sound and built-in D-Contour intelligent dynamic control
• Durable and compact ABS enclosure
• Symmetrical Design for mirror-mode floor monitoring

Key Features

• FIR-X tuning
  • Proprietary sound-processing technology utilizing a linear-phase FIR filter delivers high-quality sound at high resolution with a smooth frequency response that is unaffected by phase interference near the crossover point
• D-CONTOUR (Dynamic CONTOUR)
  • D-CONTOUR is a multiband compressor that dynamically controls the level of each frequency range according to the application and human hearing characteristics
    • FOH/MAIN: For use as a main speaker
    • MONITOR: Optimized for use as a floor monitor
• Mixing/LINK functionality
  • Features mixing functionality, enabling you to mix sounds by directly inputting three channel signals into the unit
  • LINK function enables you to easily configure a stereo or dual-mono SR (Sound Reinforcement) system using two DXR mkIIs
• DSP-controlled advanced protection system
  • Powerful protection circuits ensure secure protection in the speaker unit, amplifier unit, and power supply unit
  • Protection functionality promotes optimal performance of each component and optimum reliability without distortion even in challenging environments
