Description
Features
- Valve distortion pedal with all-analog signal path
- Iconic sound of the VOX AC30
- Powered by Nutube
- Three output modes for use as a pedal or preamp
- Selectable analog cabinet simulator
- OLED display with oscilloscope
- Active EQ to shape your signal
Specifications
Inputs/Outputs

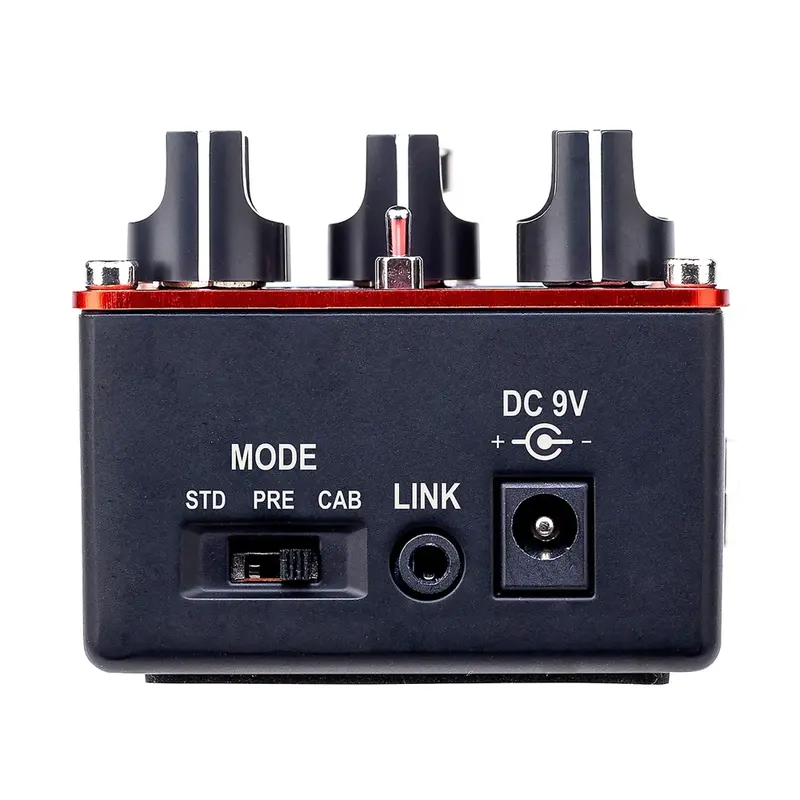

INPUT jack, OUTPUT jack, DC9V jack, LINK jack
Controls
GAIN knob, VOLUME knob, TONE CUT knob, TREBLE knob, BASS, BRIGHT switch, MODE switch
Power Supply*
1 x 9V alkaline battery or 9V center negative AC adaptor
*: The use of an AC adaptor is recommended as the unit’s power consumption is relatively high. Should you prefer to use batteries, please use the alkaline type.
Current Consumption
95 mA
Battery Life
Approx. 2 hours (When using the alkaline battery. This figure will vary depending on the actual conditions of use.)
Dimensions (W x D x H)
72 mm x 120 mm x 55 mm/2.83″ x 4.72″ x 2.17″ (Including the knob and foot rubber)
Weight
350 g/12.35 oz. (Including the battery)
Included Item
1 x 9V battery for checking operation
Accessories (sold separately)
AC adaptor
