Description

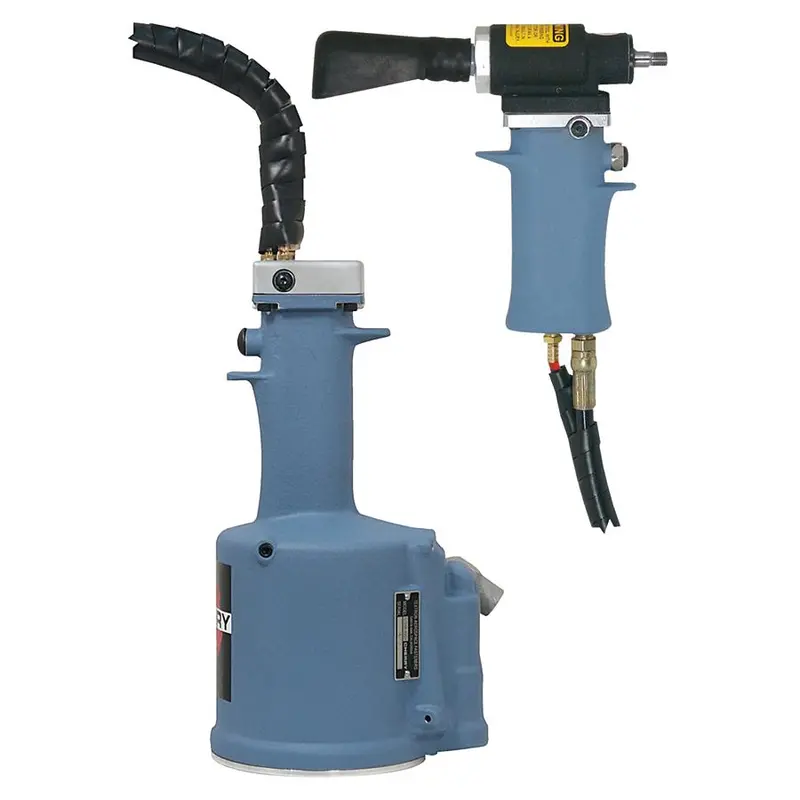

The G702A is a pneumatic-hydraulic tool designed specifically for installation of nut plate rivets. Its durable, all metal housing makes this tool ideal for use in rugged shop environments.
The H702-3NPR pulling head fits directly on the tool to install -3, -4, 2.5 mm & 3mm nut plate rivets.
10° angled head allows user to work using a natural hand position. A comfortable grip for one handed operation in any position.
Specifications:
Air Pressure: 90 PSI (6.2 bar) min./110 PSI (7.6 bar) max.
Cycle Time: approximately one second
Noise Level: 71 dB (A)
Vibration: less than 2.5 m/s2
Air Consumption: .09 SCF / cycle (2.55 L / cycle)
| STROKE | 3/4″ |
| PULLING FORCE | 1,100 lbs (499 kgs) |
| WEIGHT | 3.5 lbs (1.6 kgs) |
